Brand: MCD Racing

$1,559.99
$1,559.99
Coming Soon!
SKU 00721001

Email me when this is available

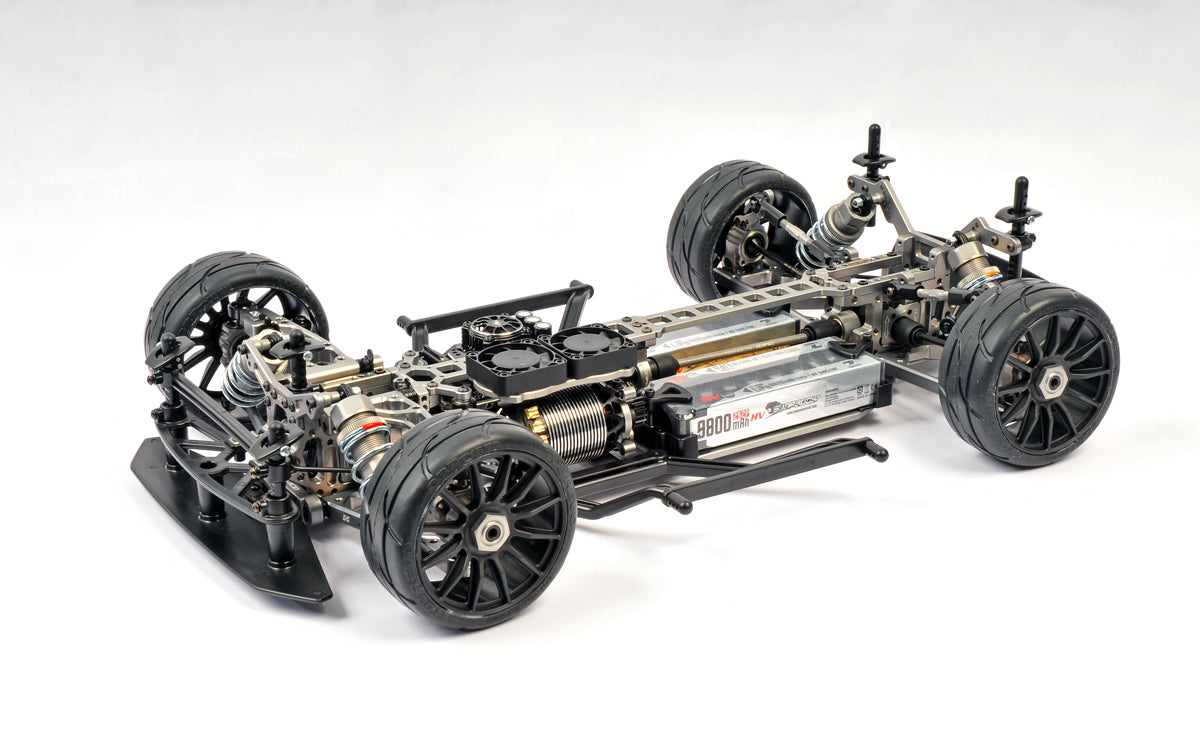

OCTOX is the result of our commitment to advancing electric racing technology with a focus on real driving needs. Built on a high-performance 4WD platform, it offers drivers the control, stability, and competitive feel they need to perform with confidence. Throughout its development, we emphasized reliability and ease of maintenance so you can enjoy the thrill of racing without worrying about the rest. The PRO version includes carefully selected composite components that offer a great balance between performance and accessibility making it the perfect step into professional racing.



Recommended Factory Assembled Retail Price: 895 EUR

The OCTOX brings a new level of innovation and refinement to the electric 4WD category, combining high performance with smart design solutions that support the driver both on and off the track.

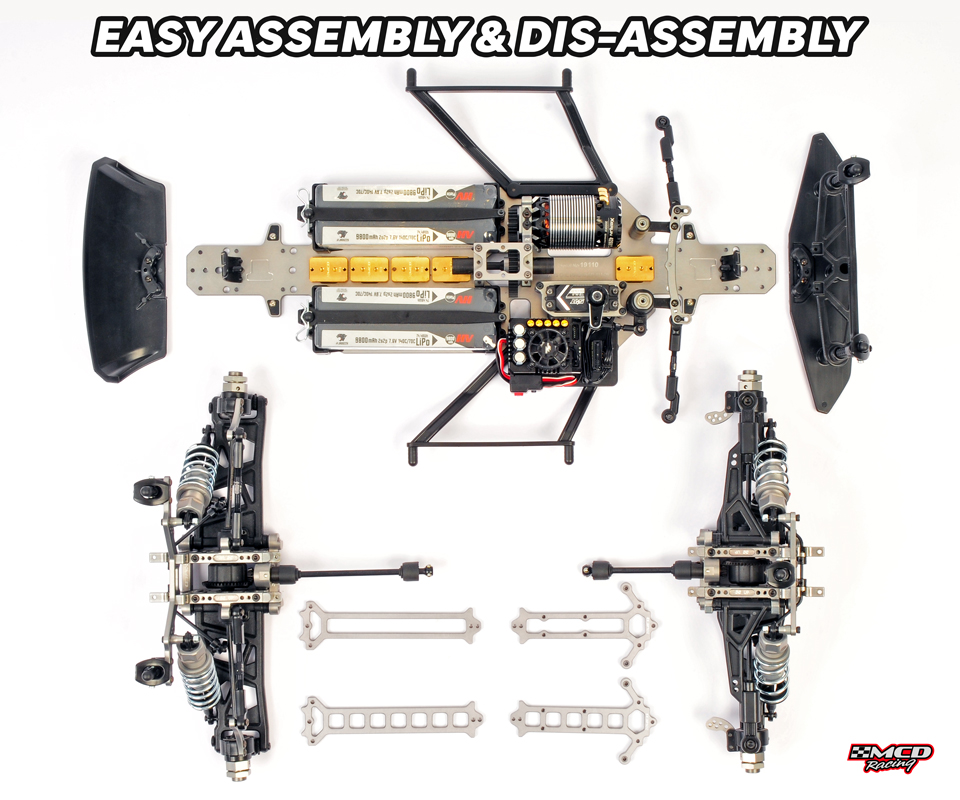

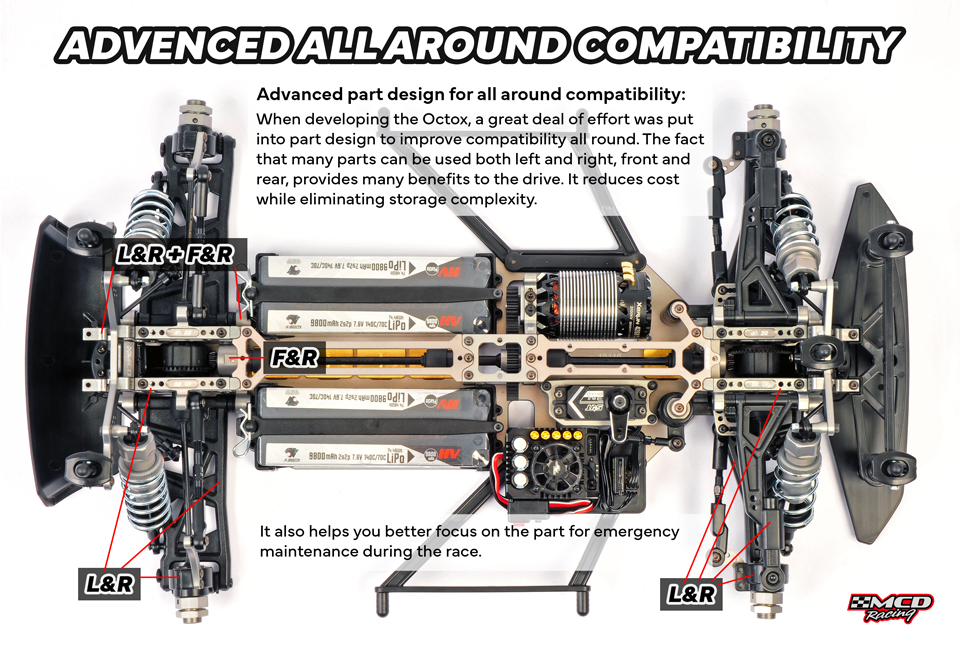

● Easy assembly / dis-assembly
● Easy maintenance

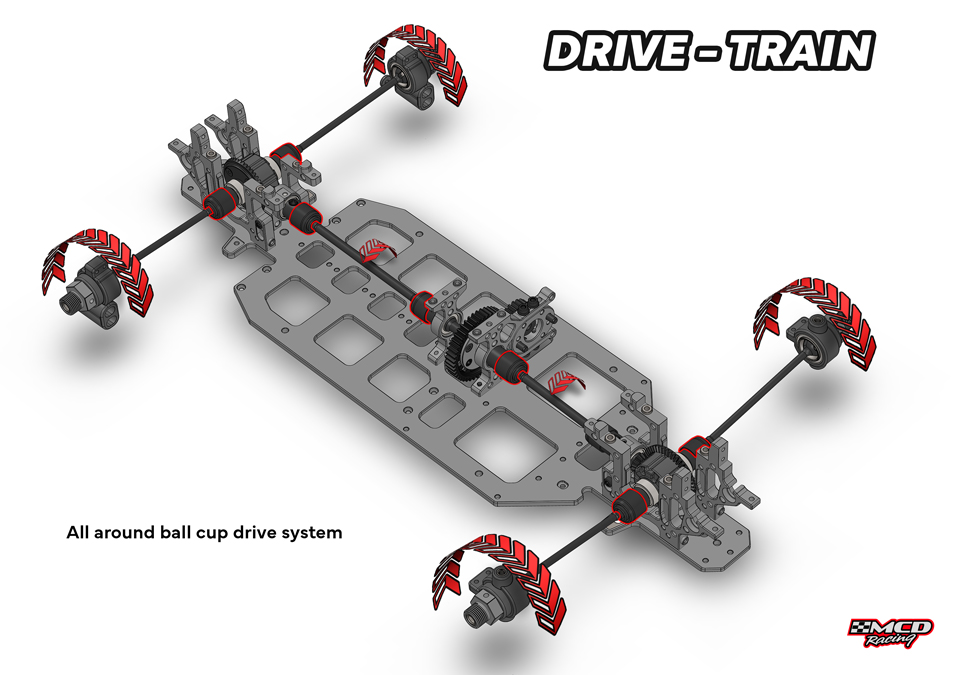

● Full-time 4WD shaft driven mechanics
● EFRA compatible dimensions

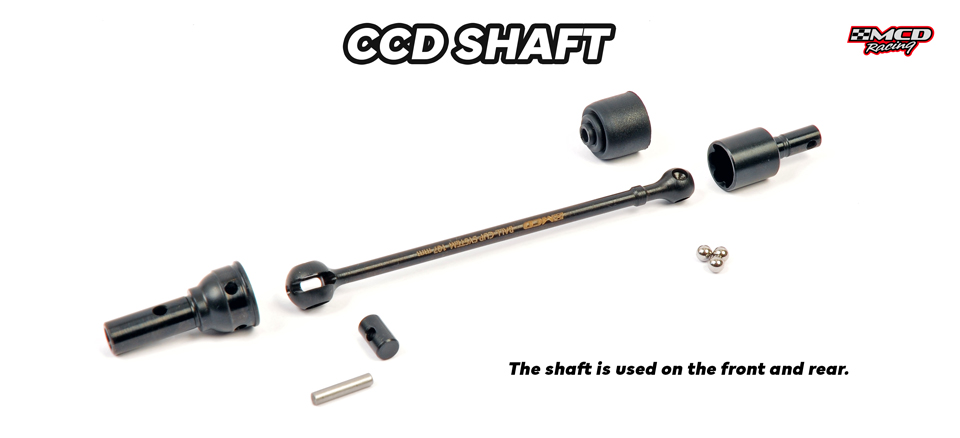

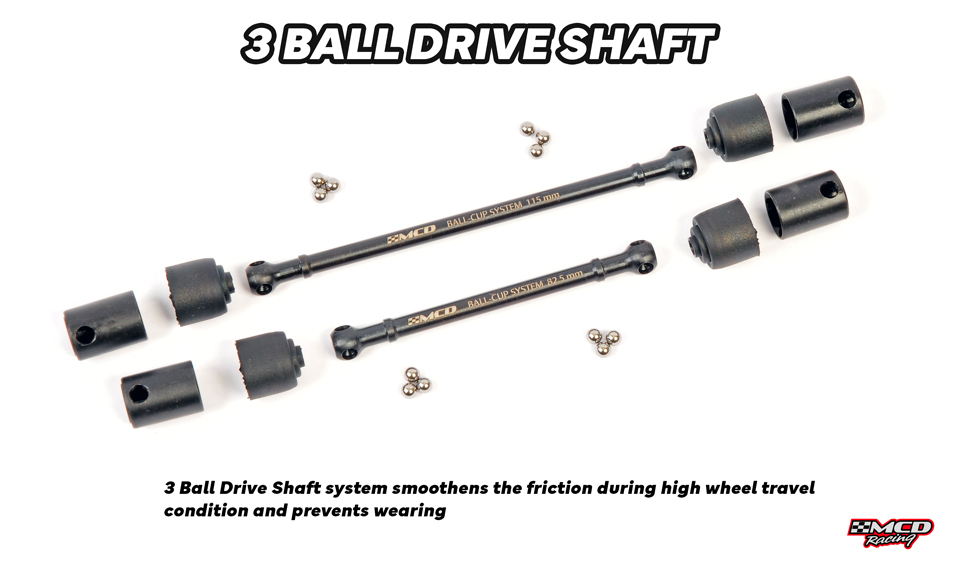

● 3 Ball drive shaft
● CNC machined, anodized light-weight 7075 aircraft alloy chassis
● Sealed-center, dust-protected, oil-resistant rubber boots

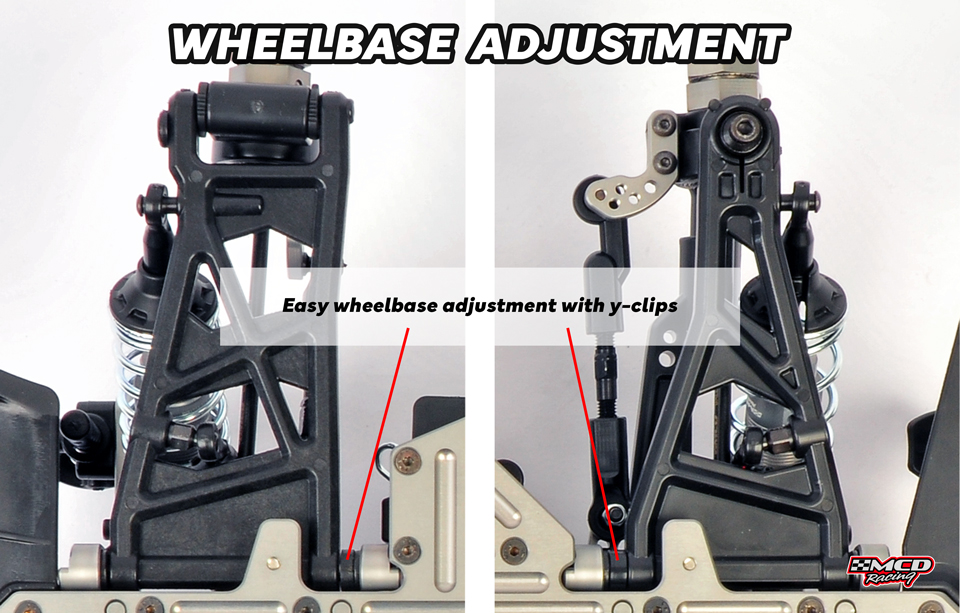

● Adjustable wheelbase
● Adjustable dive & anti-dive / squat & anti-squat

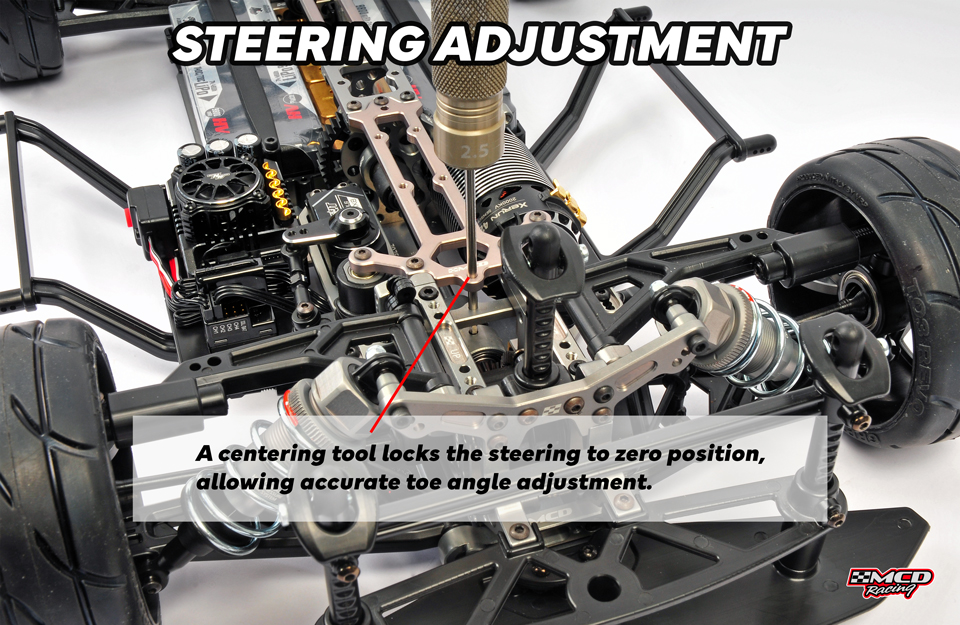

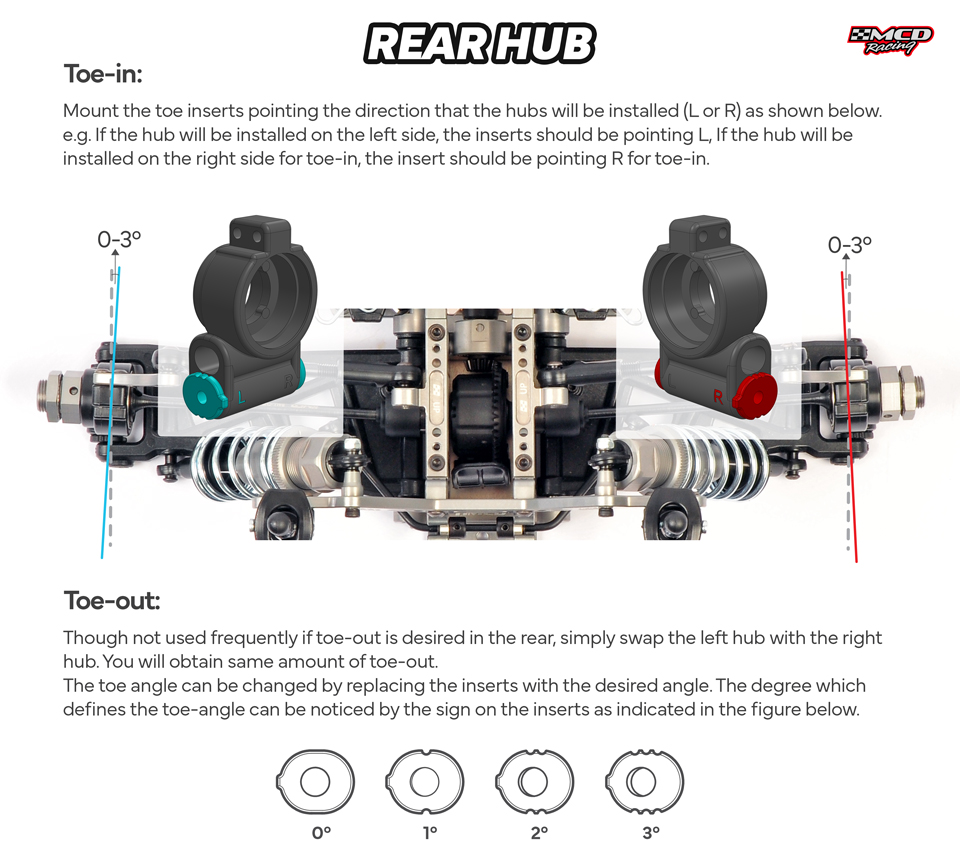

● Precision caster and toe adjustments

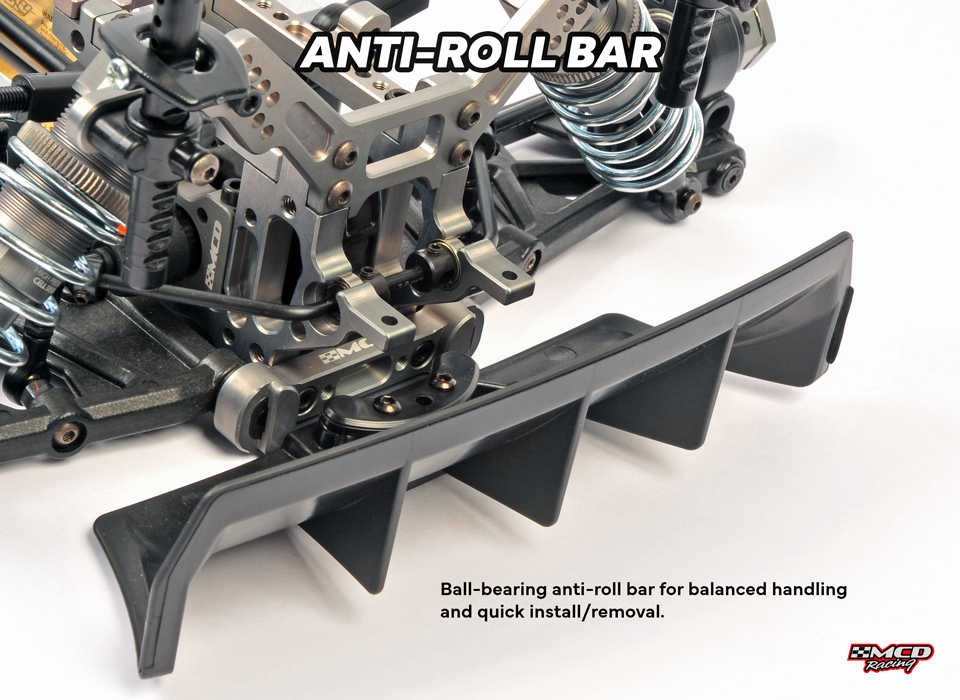

● Adjustable anti-roll bar system

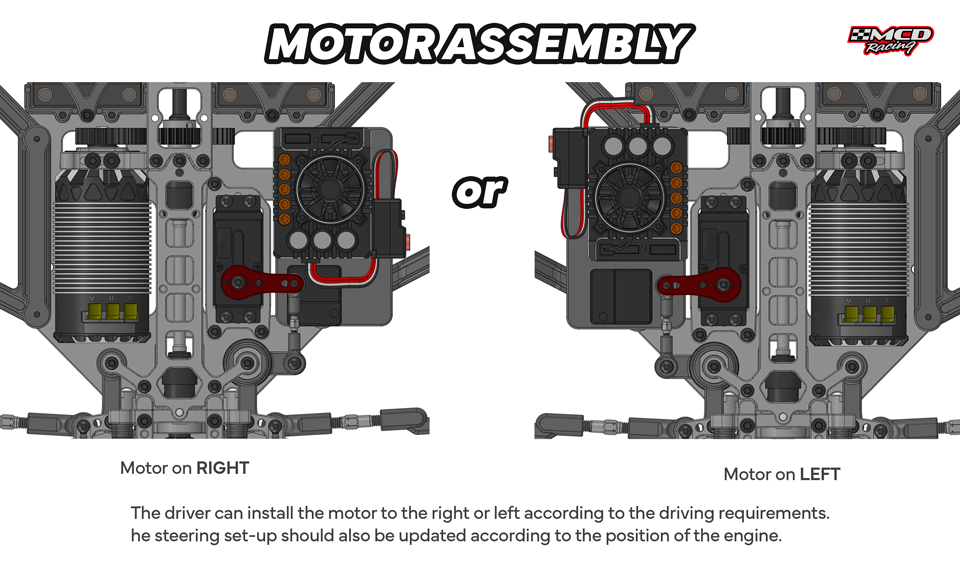

● Easy motor removal
● Shock absorbers with constant pressure cell

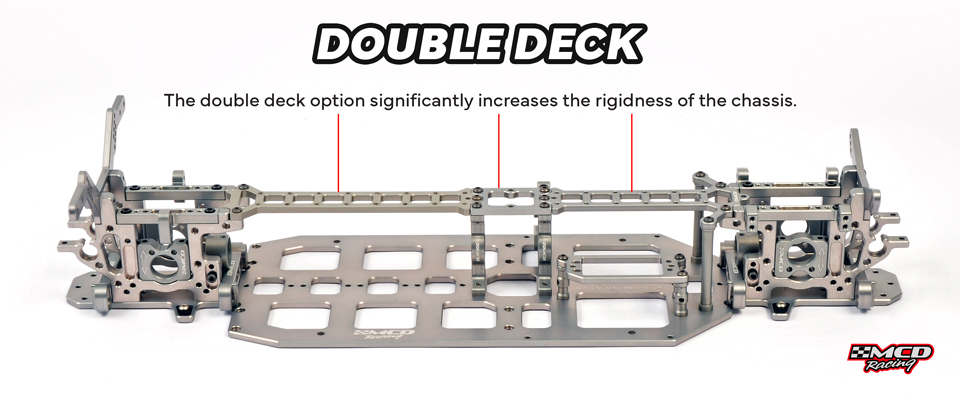

● Double-deck rigid chassis design

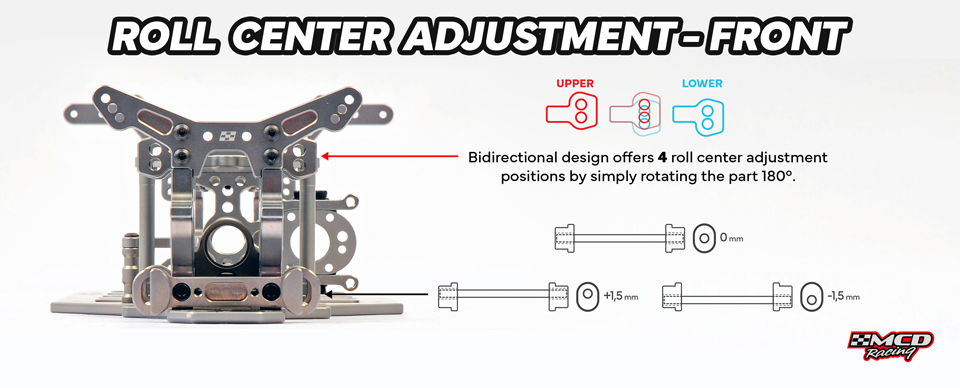

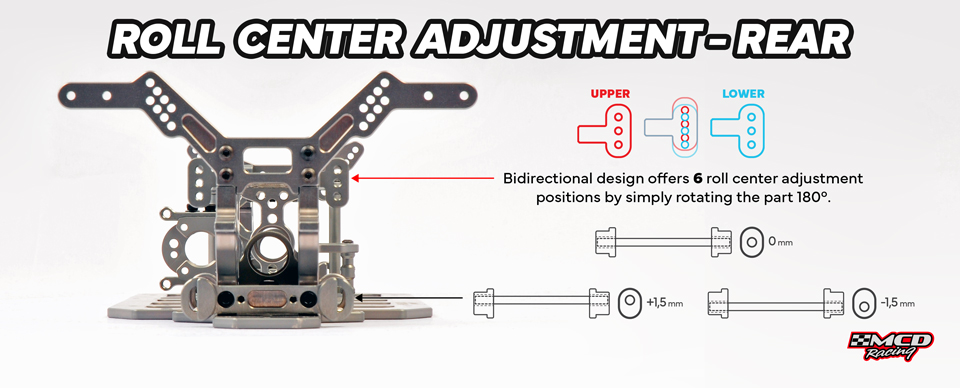

● Wide range of roll center adjustments
● Unified weight distribution system with single mass
● Modular electronics layout
● Multiple setup options for various track conditions
● 4mm light-weight 7075 air craft alloy front and rear towers
● Optimized multiple shock mounting holes
● Diff height adjustment
● Anodized alloy shock bodies

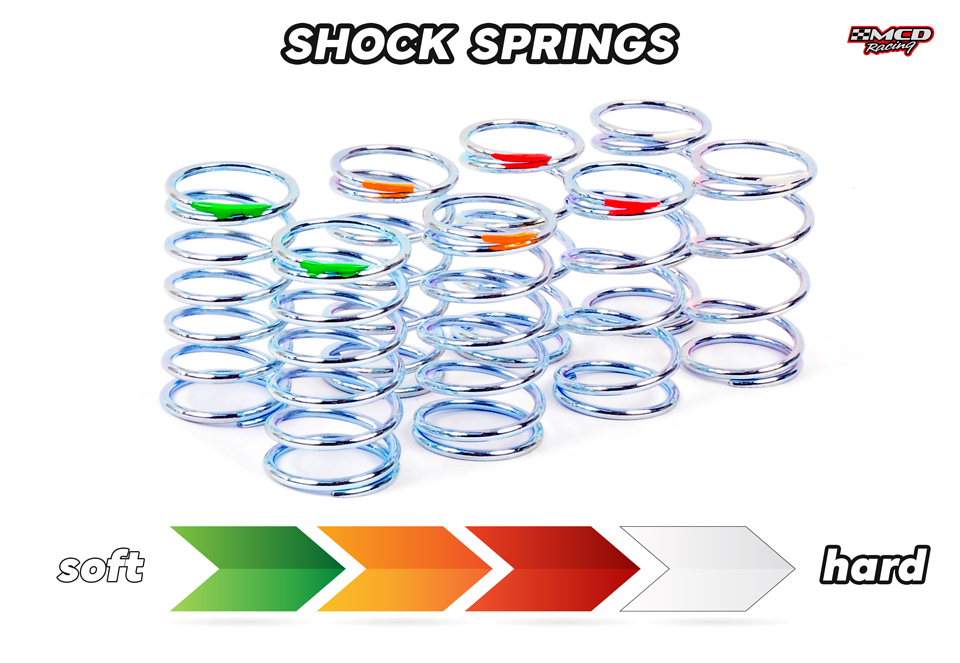

● Wide range of shock spring options
● Adjustable weight distribution
COMPARISON CHART
Pro Ultimate

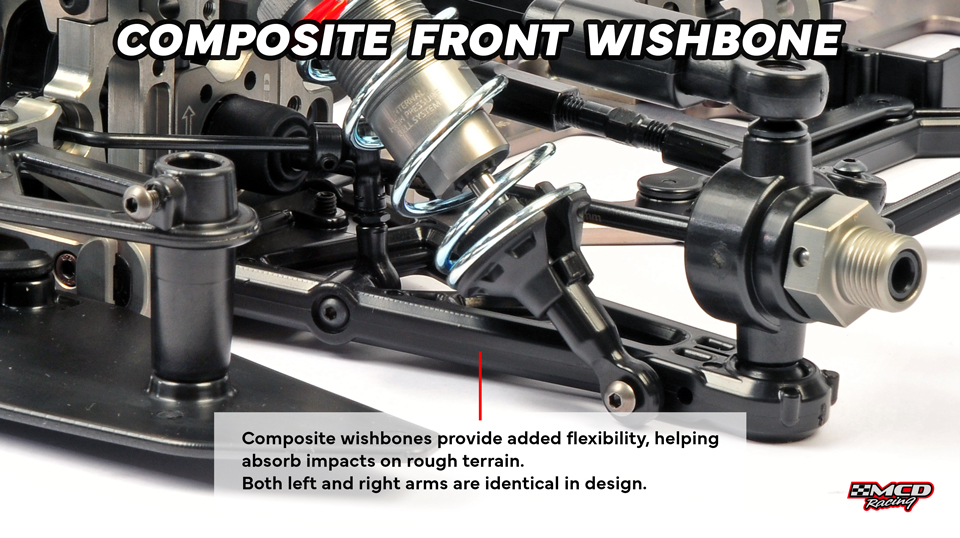

Front Lower Wishbone Composite Alloy
Front Upper Wishbone Composite Alloy

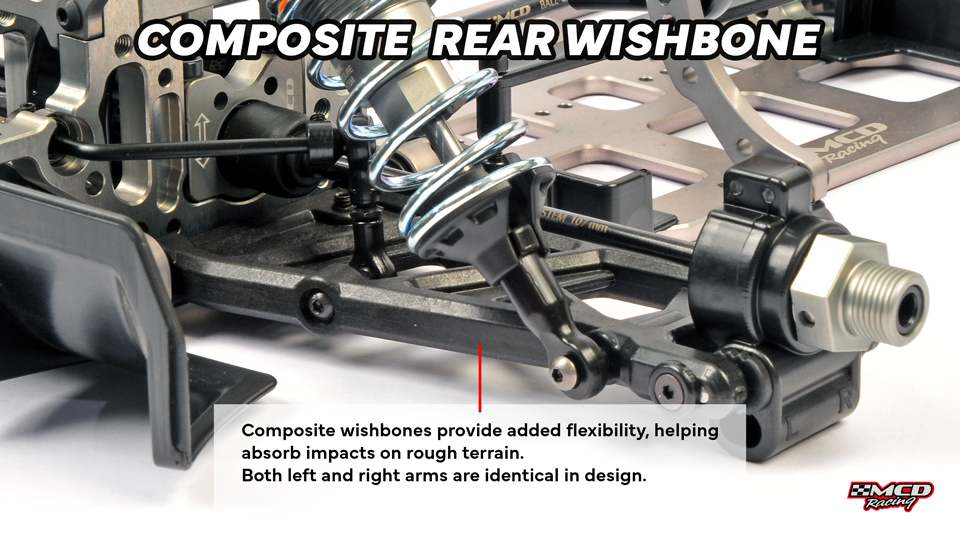

Rear Lower Wishbone Composite Alloy

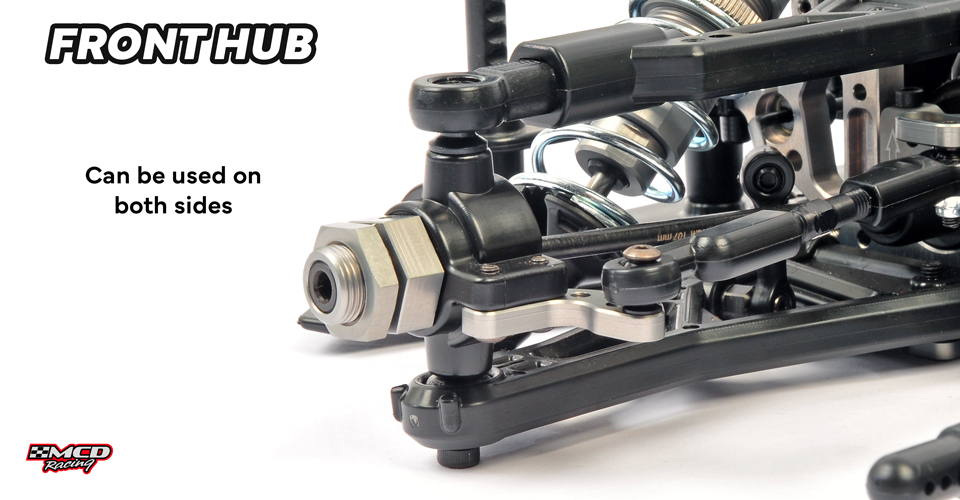

Front Hub Composite Alloy

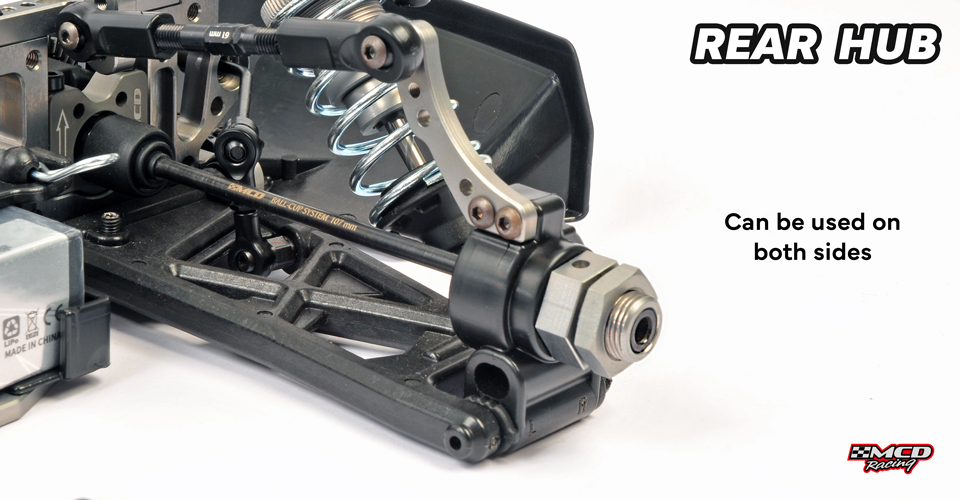

Rear Hub Composite Alloy
Lower Wishbone Thrust Bearing Ball Joint N/A STD
Turnbuckle Set Steel Alloy
Center Drive Shaft Steel Alloy

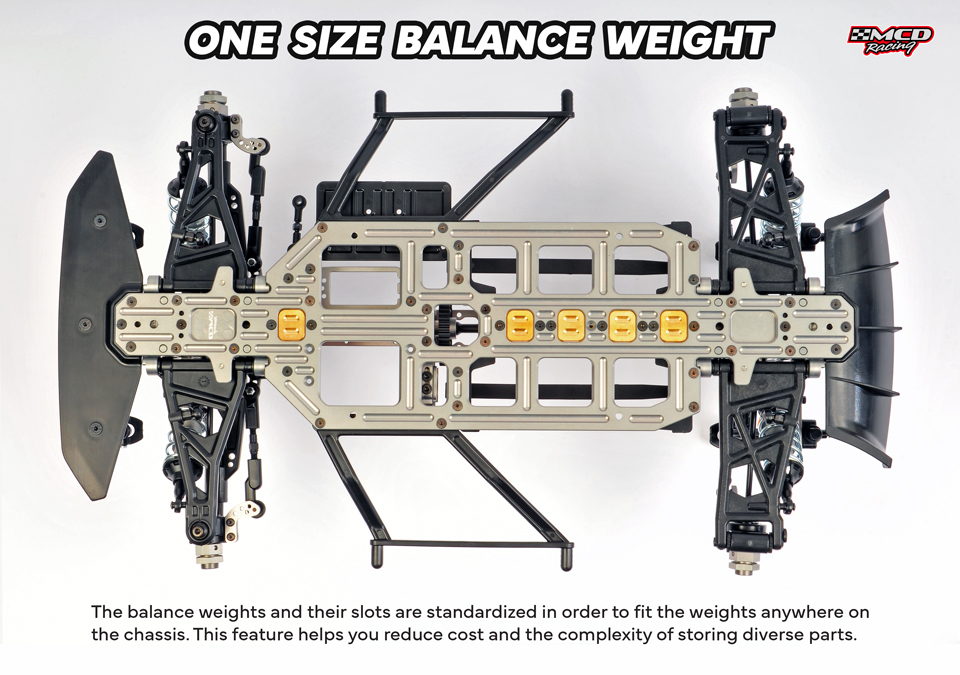

Balance Weight OPT OPT
Shaft Boots STD STD
Adjustable King-Pin Angle N/A STD

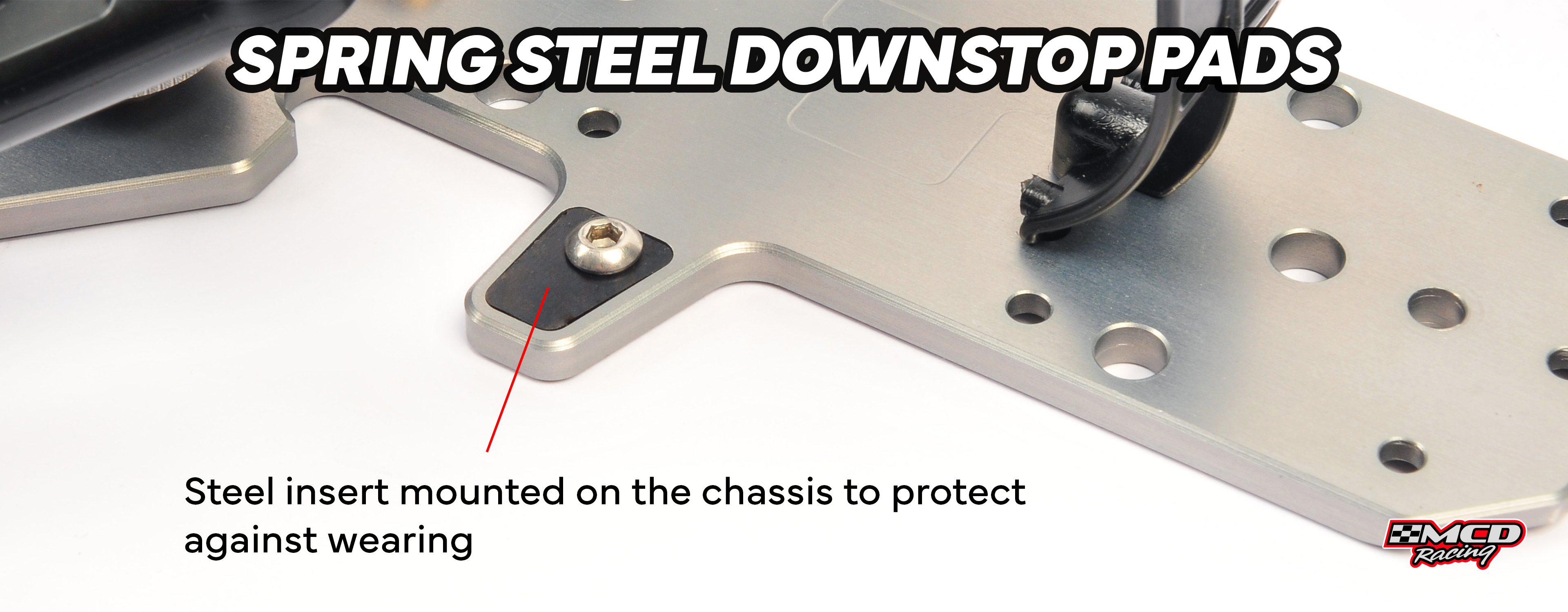

Steel Downstop Pad STD STD
Length : 525 mm (may vary installed body shells and diffuser)
Width : 310 mm (adjustable)
Ground Clearance : Adjustable
Weight : 1960 gr (chassis only)
Wheelbase : 330 - 340 mm (adjustable)
Track Width : 265 mm (tire center)
Chassis material : 7075 Anodized T6 Alloy (4 mm)
Suspension : Non-parallel non-line independent

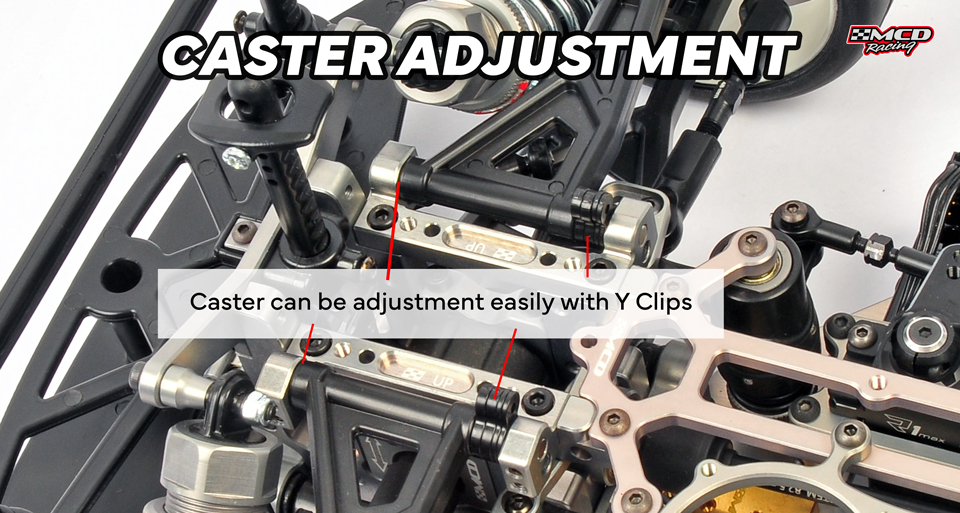

Caster angle : 3° (3° - 11° adjustable)

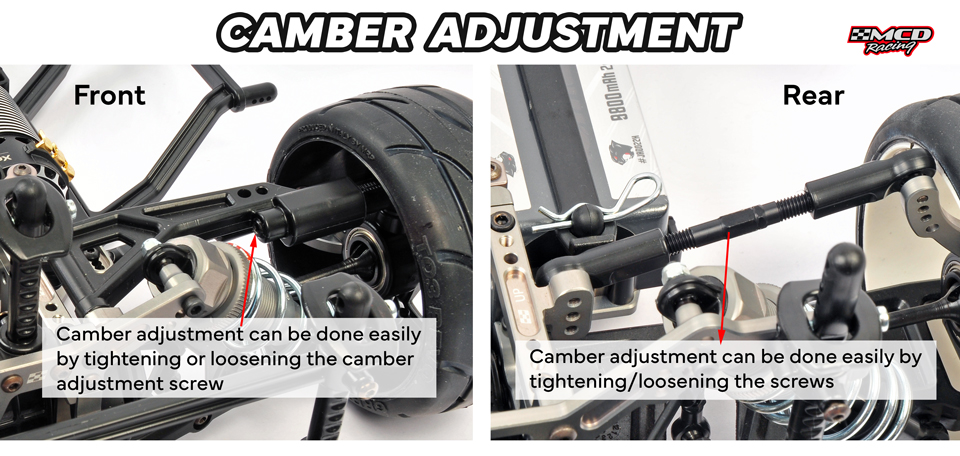

Camber angle : Adjustable
Toe angle : 0°, 1°, 2°, 3° (adjustable)

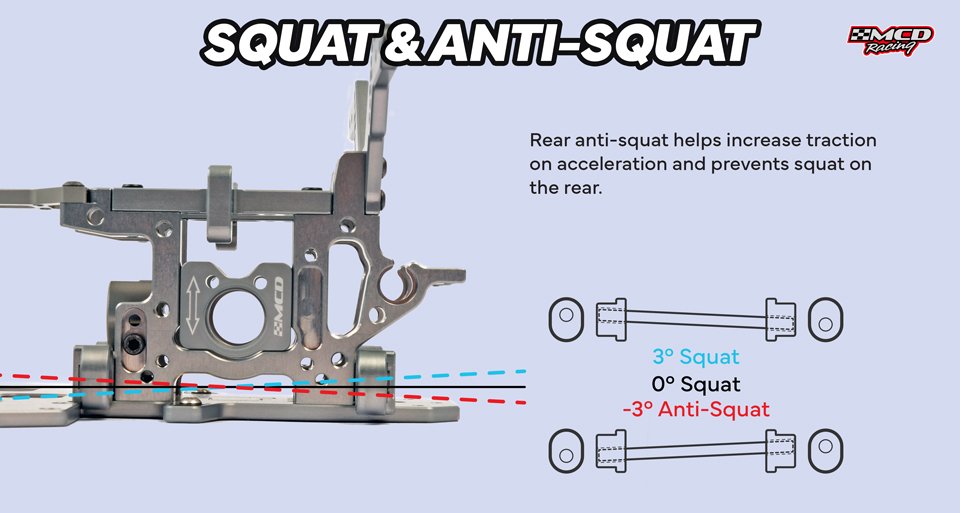

Rear Squat, Anti-Squat : 3°, 0°, -3°

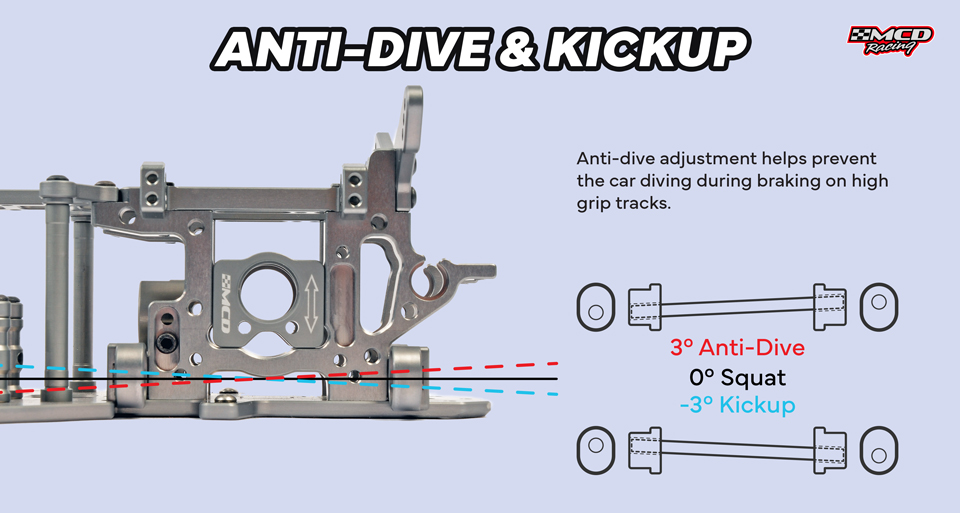

Front Kick-up , Anti-Dive : 3°, 0°, -3°
Kingpin : Adjustable
Anti-rollbar : Front 2.50 mm / Rear 2.80 mm

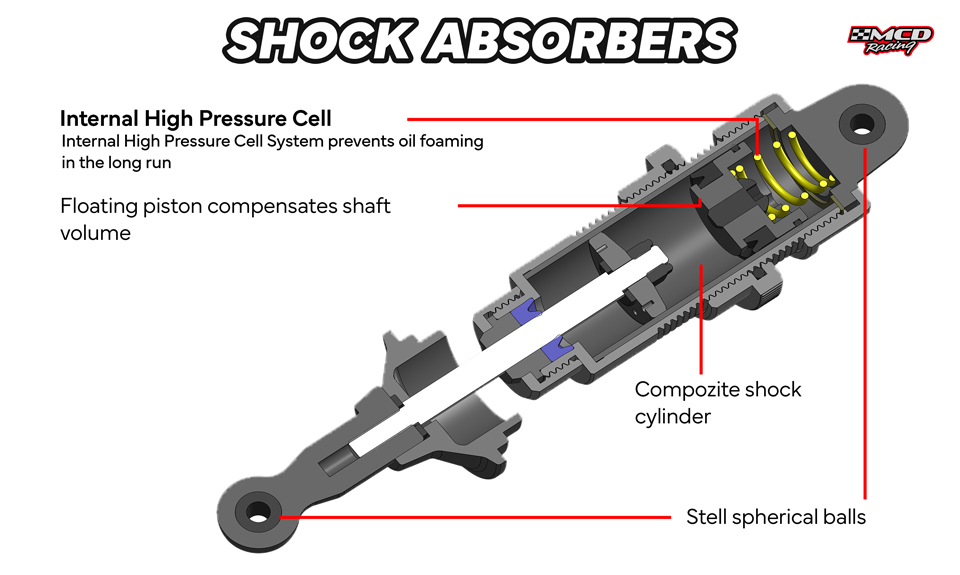

Shock Absorber : Coil-over Oil-filled Internal High Pressure Cell™
Transmission : Full-Time 4WD Shaft Driven
Gear ratio : 7.58 std. (6.63 – 8.75 adjustable, 18 different ratio available)
